Data Variables

The typed values that flow through a workflow: event payloads, node outputs, environment variables, and how to reference them with templating.

Data variables are the typed values that flow through a workflow. You reference them anywhere a node accepts a templated input, using the {{ }} syntax. Every variable picker shows the value’s data type below its name, so you know what shape of data you are about to inject.

Three categories of variables share the same templating syntax:

• Workflow data: the triggering event’s payload, outputs from upstream nodes, and values stored in Config DataSlots.
• Environment variables: workspace-scoped values (API endpoints, region codes, feature flags, default tokens) that you manage in workspace settings and reference by name.
• Templating tokens: instance metadata, linked account fields, and helper expressions baked into the templating engine.

Kinds of variables

Workflow data

Workflow data is anything generated inside a single execution: the event that triggered the workflow, outputs from earlier nodes, and the DataSlots you defined on the Application or Workflow Config.

Open the Insert Variable picker by clicking any input field on a node. The picker groups workflow data into three tabs.

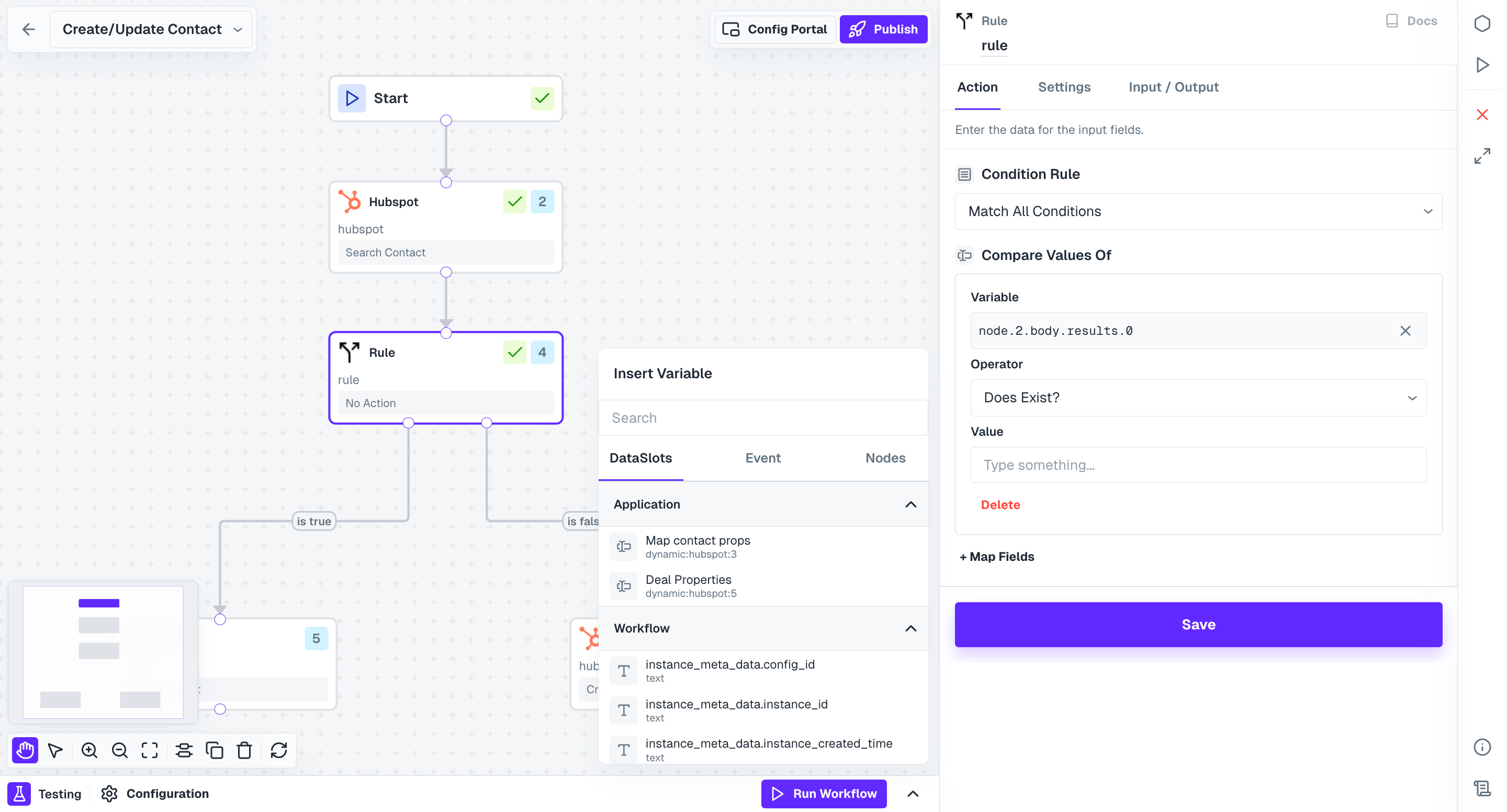

DataSlots

DataSlots are variables sourced from the Application or Workflow Config you created. A few default meta variables are also available under Workflow DataSlots.

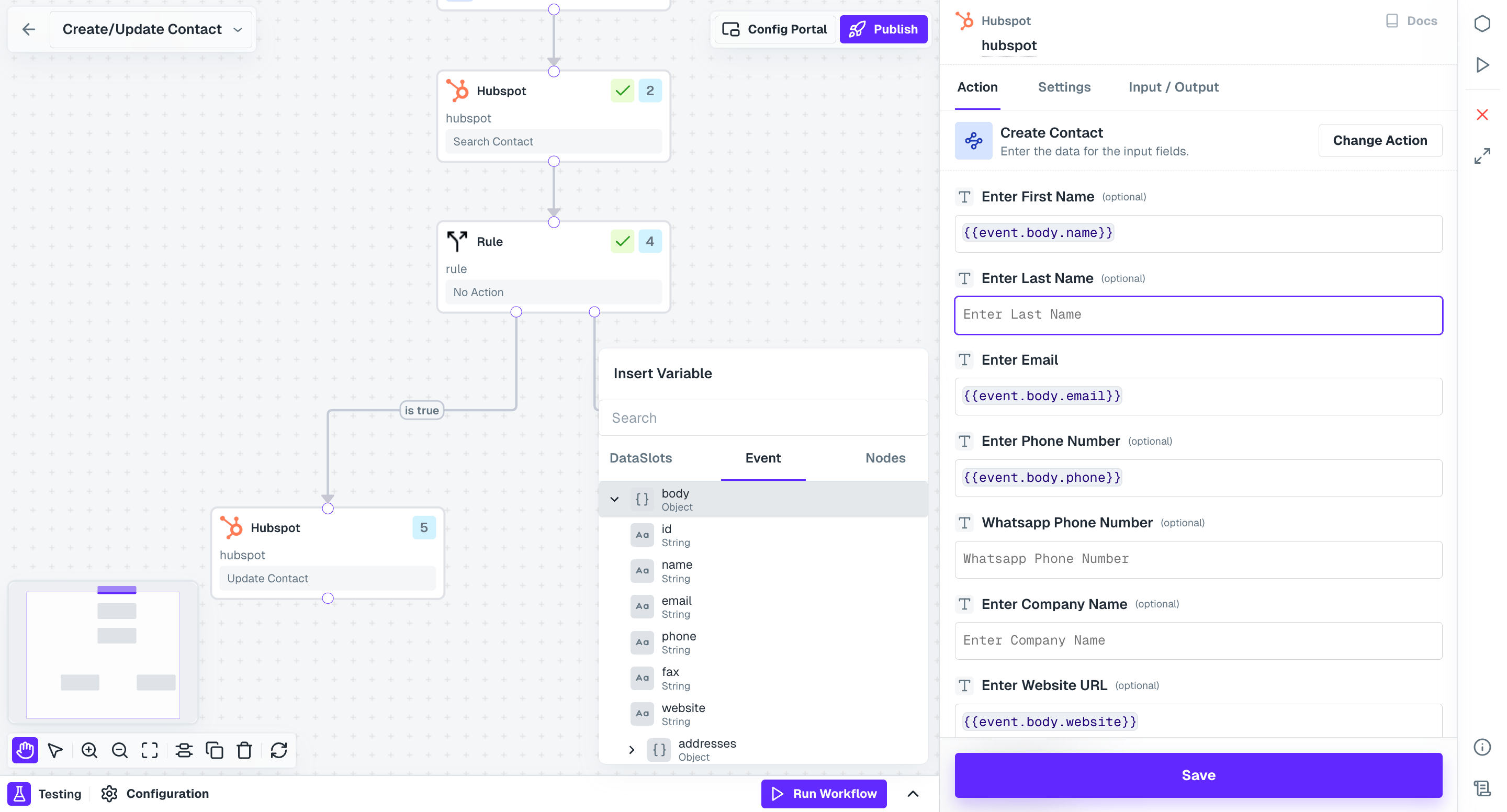

Event

Event variables come from the payload of the event that triggered the workflow. Use them to pass event data dynamically into downstream nodes.

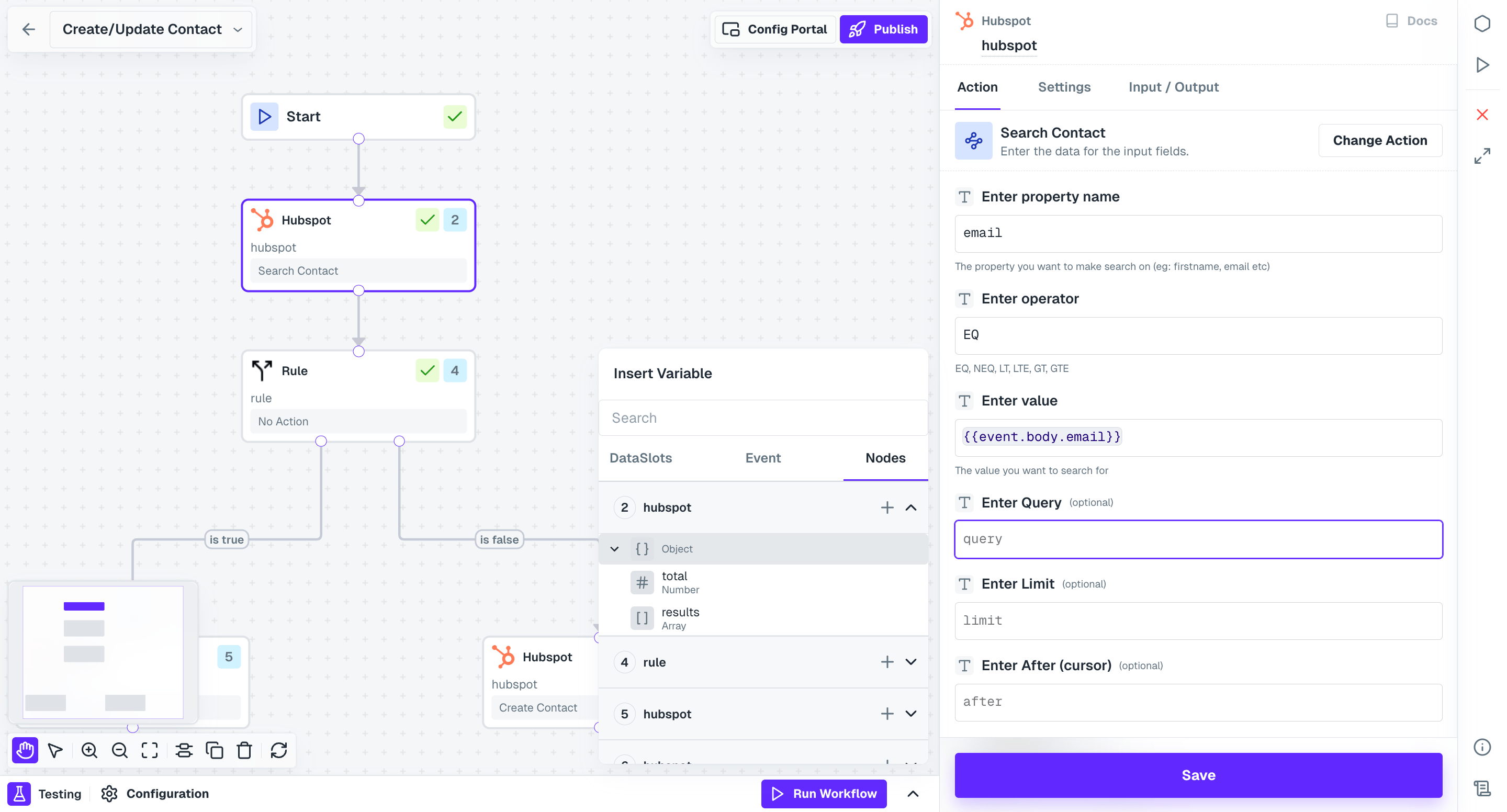

Nodes

The Nodes tab exposes data generated by upstream nodes in the current workflow. Each node returns a response object; downstream nodes can read any field on it.

A node’s response fields only appear here after you run a test execution on that node. Open the node’s Input/Output panel and click Run node to populate its variables.

If the response structure of a node changes (for example, because you sent a different input payload), run the test again. The picker refreshes to the new shape.

Environment variables

Environment variables are workspace-scoped values your workflows and integrations reference by name at runtime. Set them once on the Environment Variables page and Refold substitutes the current workspace’s value wherever a workflow references it.

Open the page from Settings > Organization > Environment Variables. Typical uses include API endpoints, region codes, feature flags, default tokens, and anything else that should vary between environments without editing the workflow itself.

Environment variables come in three scopes:

Scope	Where it applies	Typical content
Global (workspace)	All workflows and integrations in the workspace	COMPANY_NAME, SUPPORT_EMAIL, API_BASE_URL, DEFAULT_TIMEZONE
Integration	A specific integration, can vary per linked account	SALESFORCE_API_VERSION, HUBSPOT_PORTAL_ID
Workflow	A single workflow’s execution context	execution_id, start_time, processed_count

More-specific scopes override less-specific ones, so a workflow-scoped variable wins over a workspace-level one with the same name.

Create a variable

1. Open the Variables page

   Go to Settings > Variables in your Refold dashboard.

2. Add a variable

   Click Add Variable and provide a name and value.

3. Configure the scope

   Select global, integration-specific, or workflow-specific.

4. Set the security level

   Mark sensitive variables (API keys, passwords, tokens) as secure to encrypt their values.

Naming conventions

Use ALL_CAPS_SNAKE_CASE with descriptive prefixes so variables stay organized as the list grows. Names are case-sensitive.

Good names

API_BASE_URL
SALESFORCE_CLIENT_ID
WEBHOOK_SECRET_KEY
MAX_RETRY_ATTEMPTS
DEFAULT_TIMEOUT_MS

Secure vs non-secure

Always mark sensitive variables as secure. Secure variables are encrypted with AES-256, never stored in plain text, and not visible in logs or the UI.

Secure (encrypted)

SALESFORCE_CLIENT_SECRET
DATABASE_PASSWORD
WEBHOOK_SIGNING_KEY
OAUTH_REFRESH_TOKEN

Secure variables are encrypted at rest and in transit. Access requires appropriate user permissions and API key scopes.

Access control

Refold controls who can view and modify variables by role:

• Admin: full access to all variables.
• Developer: view and modify non-secure variables.
• Viewer: read-only access to non-secure variables.

Audit logging

Every variable access and modification is logged. Each entry includes the timestamp, event type, user, variable name, workflow, and execution.

{
  "timestamp": "2024-01-15T10:30:00Z",
  "event": "variable.accessed",
  "user_id": "user_123",
  "variable_name": "API_BASE_URL",
  "workflow_id": "workflow_456",
  "execution_id": "exec_789"
}

Templating tokens

Beyond workflow data and environment variables, the templating engine exposes built-in tokens for instance metadata and linked account data. These are available everywhere templates work: workflow node fields, API Proxies, and authorization/developer settings.

Instance metadata

An instance is a single workflow execution run. The engine exposes metadata about that run at runtime:

Token	Returns
{{instance_meta_data.event_name}}	Name of the event that triggered the workflow
{{instance_meta_data.config_id}}	The Config id used for this run
{{instance_meta_data.instance_created_time}}	Start time of the execution
{{instance_meta_data.instance_id}}	Unique id for this execution instance

Instance metadata is available inside both workflows and API proxies.

Linked account

Linked account variables carry data specific to the end user whose account triggered the workflow:

• User-Defined Fields (UDFs): {{linked_account.udf.<UDF property>}}
• Authorization credentials: {{linked_account.auth_credentials.<auth property>}}

Reference a variable

All variables, regardless of category, are referenced with double curly braces.

Basic reference

{{API_BASE_URL}}

Reach into a node’s response

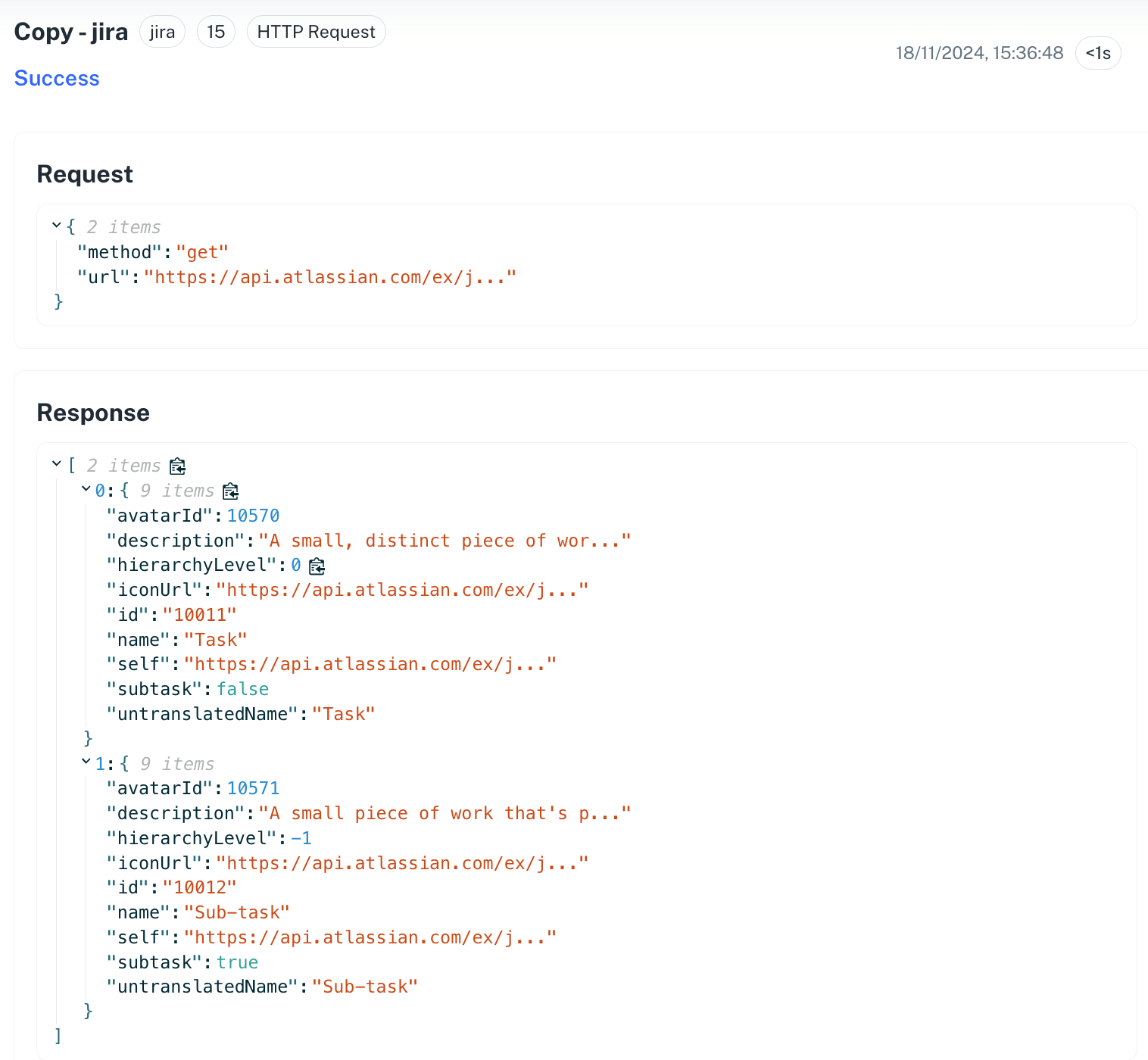

Every workflow node returns a response object. Reference it from a downstream node by its node number.

Specific property

{{node.<node number>.body.<response property>}}

The .0 form reaches into the first item of an array response. The response:0.name form returns the name field of the first item.

Use a tested response as a variable

When you run a test on a node, its response fields appear as named variables in the Insert Variable picker. These follow the format <node_number>.<response_field>, for example 4.id.

1. Select the target field

   Open the downstream node and click the input field where you need the variable.

2. Pick the upstream node

   In the Insert Variable modal, open the Nodes tab and expand the upstream node to see its response fields.

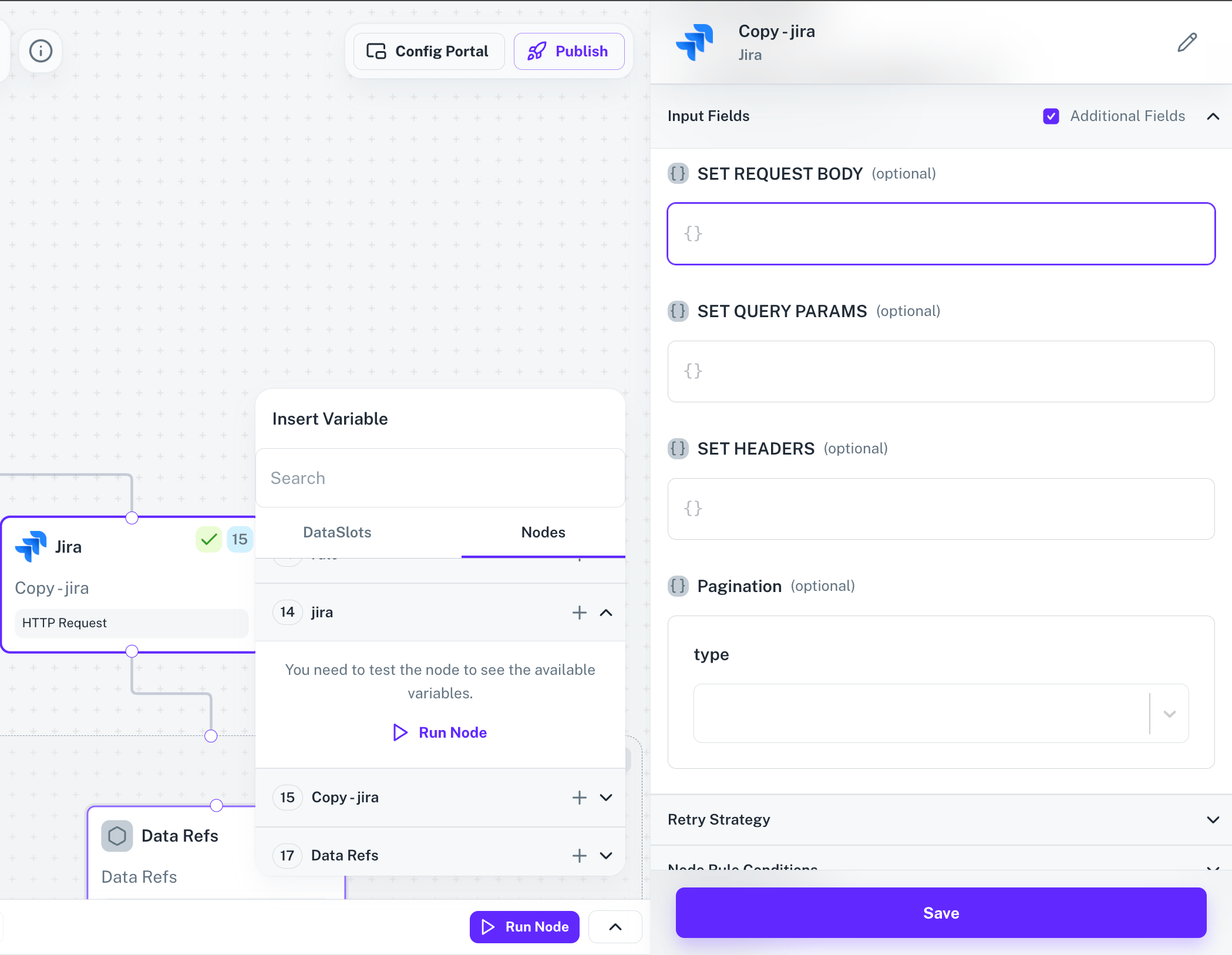

3. Run the node if no response exists

   If the upstream node has no response yet, click Run node to perform a test execution. Workflow Testing prerequisites must be satisfied first. See Workflow Testing.



If a node’s response structure changes (different input payload, different branch), run the test again with the new payload. The updated structure replaces the old one in downstream pickers.

Where templating works

The {{ }} syntax is accepted in three places:

• Workflow node fields: any input field on any node in the workflow editor.
• API Proxies: URL paths, headers, query parameters, and request bodies.
• Authorization and developer settings: connector auth configuration that references linked account data or environment variables.

HTTP Request node

Substitute variables into the URL, headers, and body of an HTTP Request node.

URL Configuration

{
  "url": "{{API_BASE_URL}}/api/v1/users",
  "method": "GET",
  "headers": {
    "Authorization": "Bearer {{ACCESS_TOKEN}}",
    "Content-Type": "application/json"
  }
}

Transform node

Embed variables inside Transform node JavaScript via string interpolation.

const transformedData = {
  id: input.id,
  name: input.name,
  email: input.email,
  source: '{{LEAD_SOURCE}}',
  environment: '{{ENVIRONMENT}}',
  created_at: new Date().toISOString(),
  api_version: '{{API_VERSION}}'
};

return transformedData;

Conditional logic

Use variables in conditions, both as raw values and as quoted strings.

if (input.amount > {{LARGE_DEAL_THRESHOLD}}) {
  return {
    priority: 'high',
    notify_manager: true,
    approval_required: true
  };
}

if ('{{ENVIRONMENT}}' === 'production') {
  return await processProductionData(input);
} else {
  return await processTestData(input);
}

Runtime and calculated variables

You can compute values during execution and store them as variables for downstream nodes.

Current timestamp

const currentTime = new Date().toISOString();
const unixTimestamp = Math.floor(Date.now() / 1000);

workflow.setVariable('execution_time', currentTime);
workflow.setVariable('unix_timestamp', unixTimestamp);

The runtime API is small:

• workflow.setVariable(name, value) stores a value.
• workflow.getVariable(name) retrieves it.

Stored values can be primitives, arrays, or objects.

Arrays and objects

Array variables

const supportedCountries = ['US', 'CA', 'UK', 'AU'];
workflow.setVariable('SUPPORTED_COUNTRIES', supportedCountries);

if ({{SUPPORTED_COUNTRIES}}.includes(input.country)) {
  // Process supported country
}

Workflow execution context

A few variables are populated automatically for every run:

Token	Meaning
{{execution_id}}	Unique id for the current run
{{start_time}}	When the execution began
{{triggered_by}}	The user or event that triggered the run
{{input_data}}	The trigger payload
{{processed_count}}	Intermediate counter you can update
{{error_count}}	Intermediate error tally
{{last_sync_time}}	Timestamp from a prior sync step

Multi-environment setup

A common pattern is to prefix variables with DEV_, STAGING_, and PROD_, then read the active environment from an ENVIRONMENT variable.

Development

DEV_API_BASE_URL=https://dev-api.example.com
DEV_DATABASE_URL=postgresql://dev-db:5432/cobalt_dev
DEV_LOG_LEVEL=debug
DEV_WEBHOOK_URL=https://dev-webhook.example.com

Detect the active environment and look up prefixed variables dynamically:

const environment = workflow.getVariable('ENVIRONMENT') || 'development';

const apiUrl = workflow.getVariable(`${environment.toUpperCase()}_API_BASE_URL`);
const dbUrl = workflow.getVariable(`${environment.toUpperCase()}_DATABASE_URL`);
const logLevel = workflow.getVariable(`${environment.toUpperCase()}_LOG_LEVEL`);

const config = {
  apiUrl,
  dbUrl,
  logLevel,
  debug: environment !== 'production'
};

Common patterns and pitfalls

Validate required variables

Fail fast when a workflow expects variables that are missing or malformed.

const requiredVars = ['API_KEY', 'BASE_URL', 'CLIENT_ID'];
const missingVars = requiredVars.filter(varName => !workflow.getVariable(varName));

if (missingVars.length > 0) {
  throw new Error(`Missing required variables: ${missingVars.join(', ')}`);
}

const apiKey = workflow.getVariable('API_KEY');
if (!apiKey || !apiKey.startsWith('pk_')) {
  throw new Error('Invalid API key format');
}

Document variables alongside the workflow

Leave a short header comment in Transform nodes so teammates know what each variable expects.

/*
 * Variables used in this workflow:
 * - SALESFORCE_API_VERSION: Salesforce API version (e.g., "58.0")
 * - MAX_BATCH_SIZE: Maximum records per batch operation (default: 200)
 * - RETRY_ATTEMPTS: Number of retry attempts for failed requests (default: 3)
 * - WEBHOOK_SECRET: Secret key for webhook signature validation
 */

Test against multiple configurations

const testConfigs = [
  { ENVIRONMENT: 'development', API_BASE_URL: 'https://dev-api.example.com' },
  { ENVIRONMENT: 'staging', API_BASE_URL: 'https://staging-api.example.com' },
  { ENVIRONMENT: 'production', API_BASE_URL: 'https://api.example.com' }
];

testConfigs.forEach(config => {
  testWorkflow(config);
});

Troubleshooting

Variable not found

The workflow fails with a “Variable not found” error.

• Check the variable name’s spelling and case (names are case-sensitive).
• Verify the scope (global vs integration-specific vs workflow).
• Confirm the variable exists in the current environment.
• Check permissions and access rights for the calling role.

Variable value not updating

Old values persist after you edited a variable.

• Clear the workflow cache if you updated the variable recently.
• Check whether a more-specific scope is overriding the value.
• Verify the workflow isn’t overwriting the variable mid-run via workflow.setVariable.
• Restart the workflow execution to pick up the new value.

Secure variable access denied

You cannot view or use a secure variable.

• Check the user’s permissions for secure variable access.
• Verify the API key has the required scopes.
• Confirm the variable is marked secure in settings.
• Contact an administrator if you need elevated access.

Node response variables missing

A downstream node can’t see fields from an upstream node.

• Run a test execution on the upstream node via Input/Output > Run node.
• If the response shape changed, re-run the test with the new input payload.
• Confirm Workflow Testing prerequisites are met.
